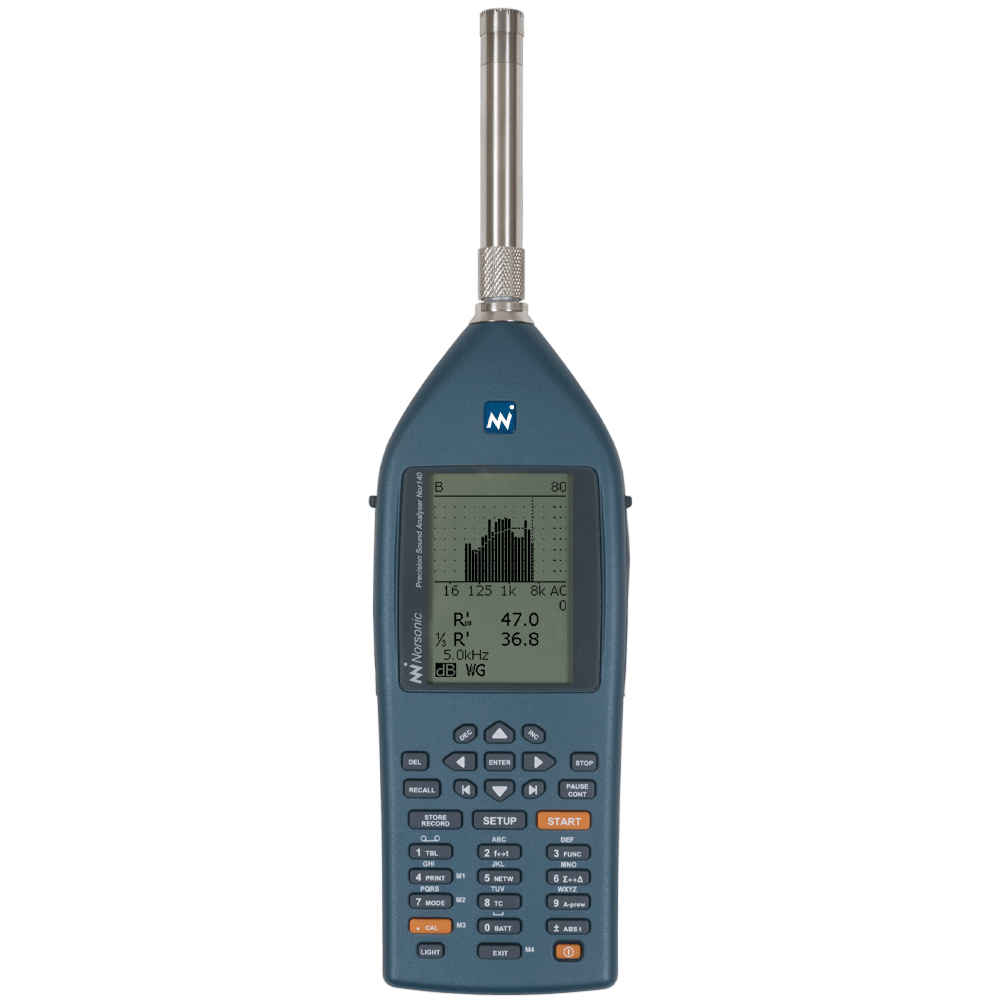

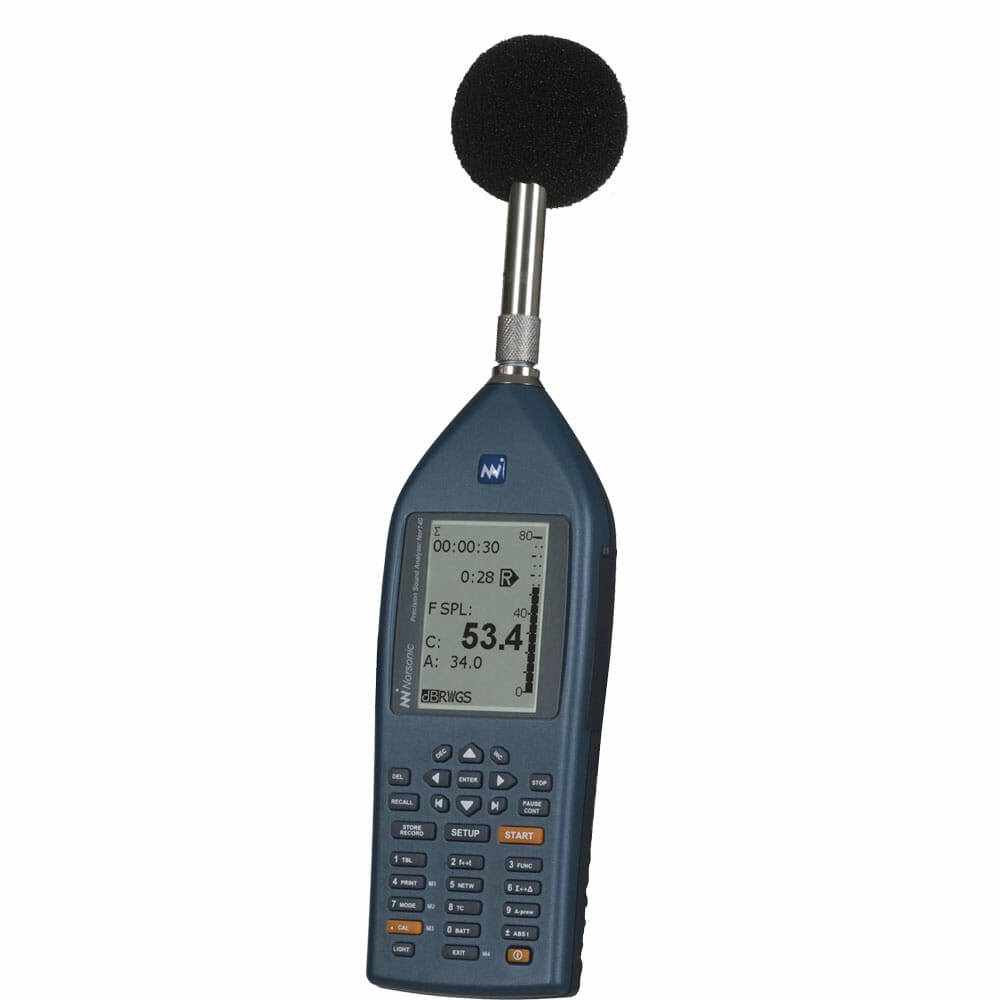

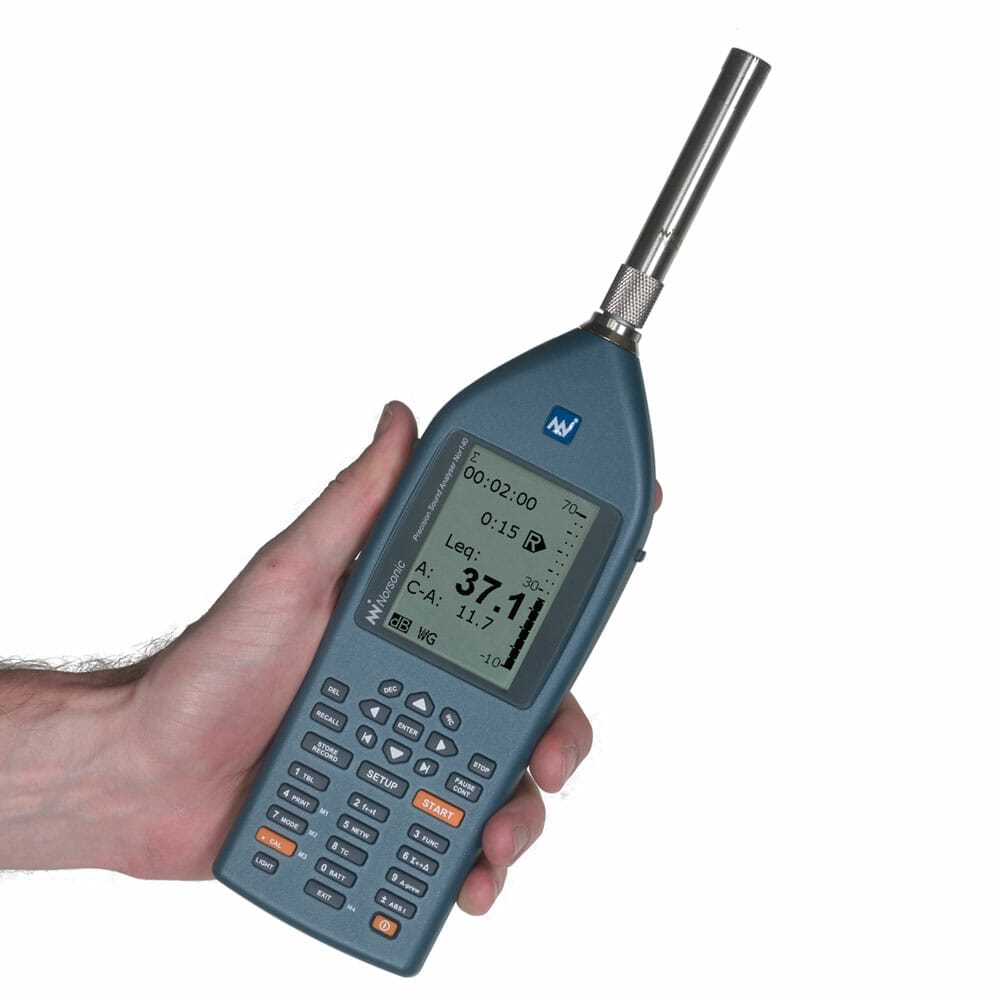

Nor140 Sound analyser

Request info/price

A precision hand held sound analyser designed for the most demanding users. A multi-tool for all acousticians, as it offers functions for almost all areas of application.

The Nor140 is packed into the smallest real time analyser featuring sound recording present on the market today.

The Nor140 sound level meter is very user-friendly, practical, reliable, robust, small, handy and light.

Applications

Environmental noise assessments
Environmental noise monitoring
Building acoustics
Noise at work

Product development
Quality control
Noise mapping
Sound Power

Room acoustics
Vibration measurements
Frontend for Nor850 multichannel system

Features

text

Complies to all relevant IEC and ANSI Class 1 specifications.
Support for the latest revision of the STIPA standard.
Support for the latest revision of the room acoustic RC mark II calculation.

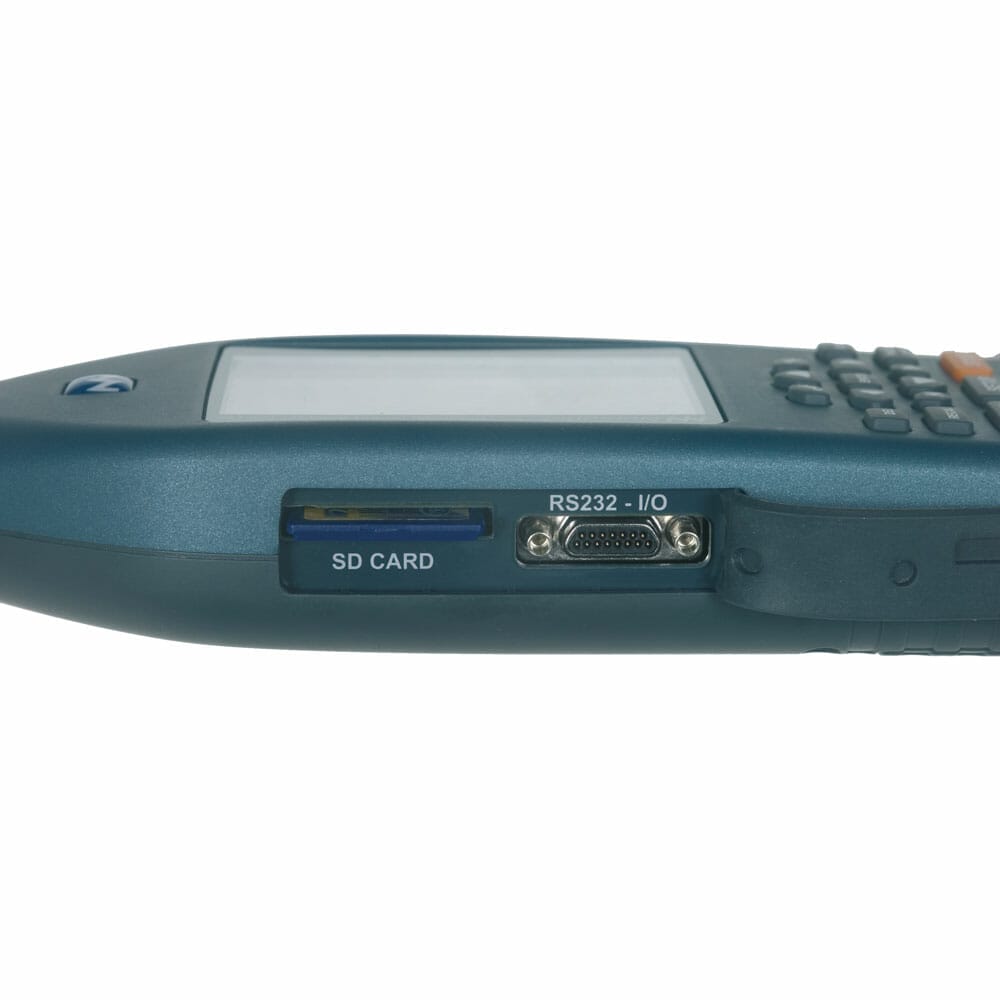

Sound recording onto exchangeable SD card.
Level vs. Time with multispectrum function from 5 ms resolution.
Parallel detection of SPL, Leq, Lmin, Lmax, LE, Lpeak and 8 statistical values.
Parallel F, S or I time constants.
Measurement of A-weighted levels simultaneously with either C- or Z-weighted levels.
Frequency analysis with 1/1-octave or 1/3-octave bands in the 0.4 Hz – 20 kHz range 8000 line FFT analysis with 1.46Hz line resolution.
120 dB dynamic range giving a “one-range” instrument covering all levels from microphone noise floor at 15 dBA to maximum SPL at 137 dBA (140dB peak).
Pause/Continue function with 10 sec back erase function.
Manual or automatic storage of results with automatic measurement repeat and clock synchronization.
Full support for all relevant Building acoustics standards such as ISO 10052, ISO 12283, ISO 140, ISO 717, ASTM E336 and E1007 with on screen sound insulation indexes.
Reverberation time calculations.
Support SweptSine measurement when controlled from Nor850 or CtrlBuild .
Advanced Trigger functions

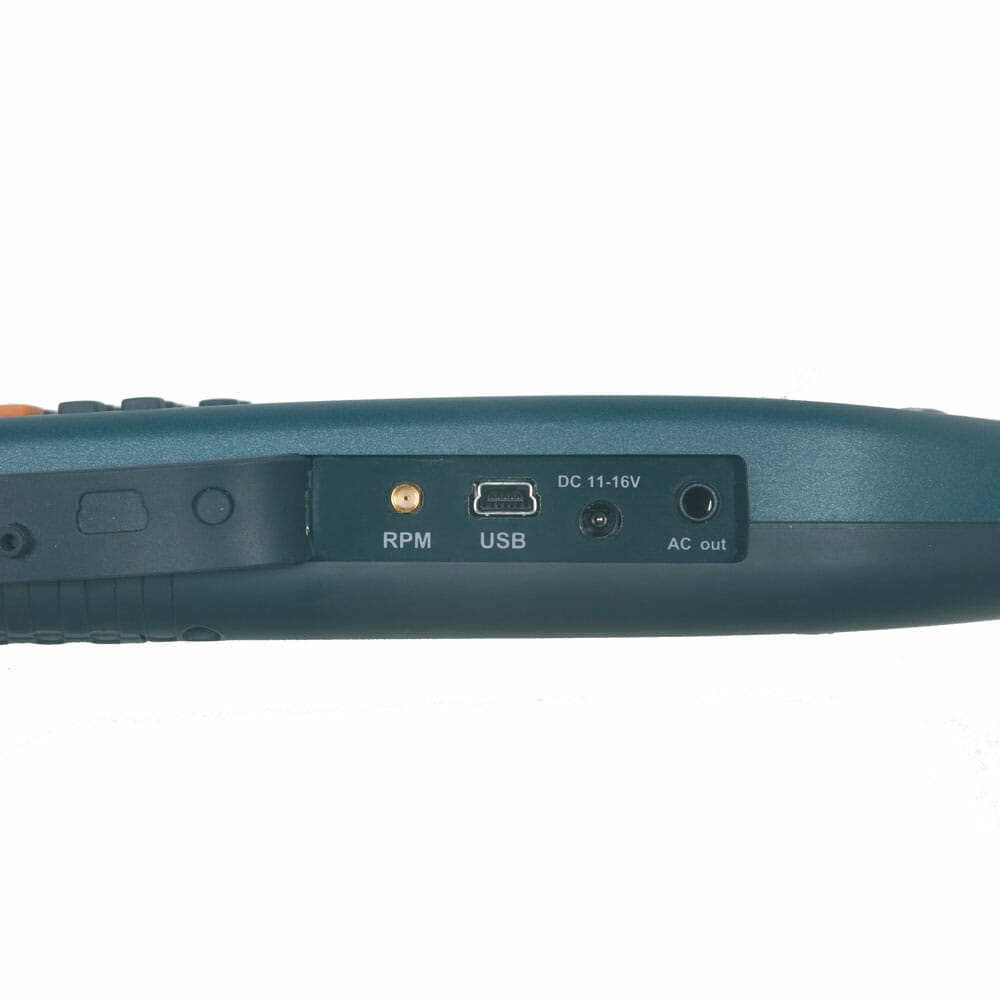

USB 2.0 and RS232 high speed digital interface.
Wireless communication using Nor520 Bluetooth transceiver
High resolution backlit display.

Standards

text

ISO 717-1, ISO 717-2, ISO 10140-2, ISO 10140-3, ISO 10140-4, IISO 16283-1, ISO 16283-2, ISO 16283-3, ISO 354, ISO 3382-2, ISO 10052, ISO 16032, ISO 1996-1, ISO 1996-2, ISO 3746
IEC 61260-1, IEC 61260-2, IEC 61260-3, IEC 61672-1, IEC 61672-1
ANSI S1.4, ANSI S1.11
DIN 45657, DIN 4109-4, DIN 4109-11:2010-05, TA-Lärm
BS EN ISO 16283-1, BS EN ISO 16283-2, BS EN ISO 16283-3
NS 4814, NS 4815, NS 8172
SS 25267
SIA 181
I.S. EN ISO 16283-1, I.S. EN ISO 16283-2, I.S. EN ISO 16283-3

Options

text

The Nor140 may be extended with a large selection of optional features, thereby allowing you to tailor the instrument to your specific requirements. Optional features may be ordered and installed at any time by just adding a new set of option codes.

Options packages:

Nor140/IH
Nor140 as Basic Level package (e.g. for Industrial Hygiene) containing options: 04, 05, 06.

Nor140/ENV
Nor140 as Advanced Level package (e.g. for ENV), containing options: 01, 03, 04, 05, 06, 07, 08, 14, 16.

Nor140/BA
Nor140 as Advanced Building Acoustics package with on board rating, containing options: 01, 03, 06, 07, 09, 10, 11, 12.

Nor140/Cons
Option package containing options: 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16.

Nor140/AT
Audiometer calibration option package containing option 01,03 and 17.

Option 1: 1/1-octave real-time filters

text

Parallel 1/1-octave real-time filters covering the 0,5 Hz – 16 kHz frequency range.
To enhance readability, the frequency range may be limited to 8Hz – 16 kHz.
All filters fulfil the IEC 61260 class 1 digital IIR base 10 requirements.
120 dB “one-range” even in the filter bands.
Results are displayed both graphically and numerically.
A-preweighting feature available on displayed results.

When fitted with option 1, the Nor140 can perform real time frequency analysis in octaves covering the frequency bands 0.5 Hz to 16 kHz in one range. A limited frequency range 8 Hz – 16 kHz can be set in order to avoid low frequency noise. A 3 Hz 3rd order high pass filter is then enabled in the analogue input stage to prevent overload due to low frequency noise. The wide frequency range with full dynamic range of more than 120 dB makes the instrument well suited for both vibration and noise measurements.

Nor140 Option 1 – 1/1 octave spectrum 0,5 Hz – 16 kHz

Nor140 Option 1 – 1/1-octave spectrum 8 Hz – 16 kHz

Nor140 Option 1 – 1/1-octave spectrum A-weighted

Nor140 Option 1 1/1-octave numeric table

Option 2: Reference spectrum with “Go/NoGo” comparison

text

Compare any measured frequency spectrum with a pre-selected reference spectrum.
Both upper and lower reference spectrum available.
“Go/NoGo” warning for quality control applications.
TTL output signal for automated systems.

The reference spectra feature is used for comparison of any measured frequency spectrum with a pre-selected user defined spectrum. It functions for 1/1-octave, 1/3 octave and the spectral weighting networks. The measured spectrum may be compared to an upper limit, a lower limit or both. If the measured signal exceeds the boundaries, a “NoGo” warning is given on the screen,and a digital signal is set on the I/O port. This is useful for many applications such as product control and spectrum comparison.

Option 2 requires that minimum option 1 be installed!

Nor140 Option 2 – 1/1-octave reference spectrum

Nor140 Option 2 – 1/3-octave reference spectrum

Option 3: 1/3-octave real-time filters

text

Parallel 1/3-octave real-time filters covering the 0.4 Hz – 20 kHz frequency range in one span.
All filters fulfil the IEC 61260 class 1 digital IIR base 10 and ANSI S1.11-2004 Class 1 requirements 120 dB “one-range” even in the filter bands.
Results are displayed both graphically and numerically.
A-weighting (pre-weighting) feature available on displayed results.

When fitted with option 3, the Nor140 can perform real time frequency analysis in 1/3 octave covering the frequency bands 0.4 Hz to 20 kHz in one range. A limited frequency range covering 6.3 Hz – 20 kHz can be set to avoid low frequency noise. A 3 Hz 3rd order high pass filter is then enabled in the analogue input stage to prevent overload due to low frequency noise.

The wide frequency range with full dynamic range of more than 120 dB makes the instrument well suited for both vibration and noise measurements.

Option 3 requires that minimum option 1 be installed.

Nor140 Option 3 – 1/3-octave spectrum A-weighted

Nor140 option 3 – 1/3-octave spectrum 0,4 Hz – 20 kHz

Nor140 Option 3 – 1/3-octave spectrum 6,3 Hz – 20 kHz

Nor140 Option 2 – 1/3-octave numeric table

Option 4: Statistical calculation of LN values

text

Calculate 7 fixed LN values (L1%, L5%, L10%, L50%, L90%, L95% and L99%).
Parallel calculation of 1 editable LN value selectable within the range 0.1 – 99.9 %.
Statistical calculations based on 0.2 dB class widths covering the entire 130 dB range.
Parallel statistical calculation on both A- and C-/Z-weighted networks.
If real-time filters are installed (option 1 or 3), statistical calculations are available for the individual filter bands as well.

Option 4 adds statistical distribution to the Nor140 functionality. There are eight percentiles shown, out of which one is user selectable. The class width is 0.2 dB over the entire 130 dB range.

The statistical distribution calculations employs the F time constant and applies to the spectral weighting networks (A and C or Z) as well as all the individual 1/1 and 1/3-octave filter bands (if applicable). The back-erase feature, which deletes up to the ten most recent seconds of acquired global data prior to a pause upon resuming, updates the statistics buffers as well to maintain consistency.

Nor140 Option 4 – Statical LN table

Option 5: Parallel F, S and I time weightings

text

Simultaneous measurement of F, S and I time weightings.
Parallel measurement of three different SPL, Lmin and Lmax functions based on F, S and I time weightings.
Parallel calculation of Leq, Leq,I, LE and LEI functions using no time constant and I time weighting simultaneously.
The parallel measurement using three time weightings is available on both A- and C-/Z-weighted networks.

Option 5 enables parallel measurement of all time constants simultaneously. If real time filters are installed, the parallel time weighting functions are available for the individual filter bands as well.

Option 6: Level versus time measurement

text

Measures the time “Profile” (level vs. time) of the noise signal with preset time resolution simultaneously with the overall “Global” measurement.
Selection of preset intervals within the 1 second to 199 hours interval range.
Automatic level versus time storage of LAeq, LAmax and LCpeak (or LZpeak).
Automatic multispectrum storage of Leq and Lmax if option 1 is installed.
Level versus time measurement continues during a paused Global measurement.
Markers identify any pause, stop or continue of the measurement.
Real-time graphical and numerical display of the level versus time results.

Automatic markers:
A pause marker is inserted into the time profile in pause mode. A recorder marker is inserted when the instrument is doing a sound recording, and an overload marker is inserted if overload occurs.

Nor140 Option 6 – L(t) numeric table

Nor140 Option 6 – Level versus time

Option 7: Advanced Level versus time measurements

text

Selection of preset intervals within the 25 msec to 199 hours interval range.
5 msec interval resolution below one second and one second resolution above.
Free selection of any A- and C-/Z-weighted functions to be stored at each preset interval.
Possible operator marker settings during the measurement.
Selection of 3 different single markers and 1 toggle marker.

The enhanced time profile mode allows logging of Leq, Lmax, Lmin, Lpeak, Le and SPL for all weighting networks and frequency bands for time constant F, S and I in parallel if option 5 parallel time constant is enabled. The user may select from one to all available parameters to log. The time resolution is from 5 ms logging to memory. If the frequency analysis option is installed, these values may be measured too, both as time profile multi spectrum values and as global values.

User controlled source coding
With option 7, the instrument gets eight marker functions, where as four are user defined. Three of these are single markers and one is a toggle marker.

Option 7 requires that minimum option 6 be installed.

Nor140 Option 7 – L(t) with markers

Nor140 Option 7 – Table with markers

Option 8: Sound recording

text

Storage of the sound signal itself onto the SD card or the internal memory.
Triggered by an external hand-switch, by a level trigger or by a manual key push
8, 16 or 24 bit accuracy.
12 or 48 kHz sampling.
0 – 96 dB digital gain.
Reference calibration tone can be added at the beginning of the first recording in a measurement.

Option 8 allows storing the sound signal itself onto the SD card or the internal memory of Nor140 sound analyser. This option is especially useful for source identification. The sound recording can be trigged by an external hand switch, by a level trigger (requires option 16) or by a manual key push.

Several recording formats are supported, ranging from 8, 16 or 24 bit and with sampling rates of 12 or 48 kHz. Using 48 kHz sampling and the stored sound signal may be used for further processing. The Nor140 has a large dynamic range – exceeding 120 dB. This means that if you try to play back the signal on your PC you will – in most cases – hear nothing!

To overcome this problem a special digital gain, 0 – 96 dB, can be added to the sound recorded signal without affecting the calibration or measured values. Another useful feature is that you may play a 10 sec reference tone – sine wave, pink or white noise in the beginning of a measurement to set a reference level when later replaying recorded data.

Option 8 requires that minimum option 6 be installed.

Nor140 Option 8 – Lt with recording marker

Option 9: Reverberation time measurement mode

text

Reverberation time based on impulse or noise (option 10) excitation.
Calculates both T20 and T30; backward integrated decay for impulse.
Displays the graphical reverberation decay for each frequency band.
Covers the 63 – 8000 Hz frequency bands for the 1/1-octave filters.
overs the 50 – 10000 Hz frequency bands for the 1/3-octave filter.
Possible to store the reverberation time measurement as a wave-file.

Option 9 requires that minimum option 1 be installed.

Nor140 Option 9 – Reverberation decay

Nor140 Option 9 – Numerical RT table

Option 10: Noise Generator

text

Produces white or pink noise excitation signals with adjustable output level.
Synchronization of noise signal with measurement start and stop.
Allows noise excitation of reverberation time measurements if used with option 9 Reverberation time.
Automated spectrum shaper feature to reduce neighbour frequency band differences as required in ISO 140 part 3 and 4.

The signal generator option generates both white and pink noise. Both impulse excitation and continuous noise excitation are supported, making the noise generator useful for both reverberation time measurements as well as sound insulation measurements.

Option 11: Building Acoustic measurement mode

text

Extends the Nor140 instrument into a complete single channel building acoustic analyser.
Synchronises excitation in the source room with the measurement operation (option 10).
Makes room averaging of multiple microphone positions for sound level and reverberation time measurements for ISO 140/717 users:
- Calculates the survey and engineering grade airborne sound insulation ratings R’w, D’n,w , and D’nT,w.
- Calculates the survey and engineering grade impact sound insulation ratings L’n,w and L’nT,w.
- Calculates the correction terms C, Ctr and Ci including the extended frequency versions.
In conjunction with NorBuild, can easily calculate rating per ASTM and other National Standards.
Allows remote use in combination with the Nor1028/3 CtrlBuild software package.
Can be used for cable-free measurements using the Nor520 Bluetooth Transceiver.
Fulfils the requirements of the survey grade ISO 10052 Standard

Option 11 turns your Nor140 into a powerful single channel building acoustic analyser. All the required parameters for performing both airborne and impact sound insulation are calculated. Using the Nor140 for measuring building acoustic, both airborne and impact noise has never been easier. With the Nor1028 NorBuild sound insulation reporting program, Norsonic offers a powerful and user-friendly building acoustic solution.

Option 11 requires that minimum option 1, 3, 9 and 10 be installed.

Nor140 Option 11 – Building Acoustics – Results

Nor140 Option 11 – Building Acoustics – Criteria

Option 12: Swept-Sine measurements

text

Nor140 may perform advanced sound insulation measurement using the innovative Swept-Sine technique when used with Nor850 reporting software or Nor1028 NorBuild software.

Building acoustics measurements using impulse response measurement technique as described in ISO 18233.
Enables the measurement of sound insulation and reverberation time under severe background conditions.
Performs tests of dividing walls with extreme sound insulation indices.
Measures extreme short reverberation times.

Option 13: STIPA (Speech Transmission Index) measurement mode

text

Calculates the STIPA speech transmission index.
Fulfils the requirements of the IEC 60268-16 ed. 5 Standard for STIPA.
Download standardized signal excitation from our webpage, for use through separate public address loudspeaker system.

Background noise correction
Adding STIPA option to Nor140 turns the analyser into a powerful tool for analysing the Speech Transmission quality in public areas. The method can be used to compare the speech trans-mission quality at various positions and under various conditions within the same listening space. STIPA replaces the former used RASTI method as a more accurate method compared to RASTI.

A measurement in one listening position takes about 13 sec. Unlike many other STIPA measurement systems, the Nor140 can also correct the results for the background noise. In addition all calculated indexes are displayed, not only the single STIPA value. This feature is valuable for engineers optimising the room acoustics in public spaces or other areas where the speech quality is important.

Option 13 requires that minimum option 1 be installed!

Option 14: FFT measurement mode

text

8000 line FFT analysis with 1.46Hz line resolution.
Covers the 1.46 – 9.6 kHz frequency range.
Both engineering units and dB.
Pre-selection of 1 – 1028571 averages.
Useful when searching on problems with rotating machinery.
Fulfil the requirements for FFT analysis when searching for tonality according to the ISO/DIS 1996-2 Annex C (2005) standard.
Display compression in binary sequence 1 – 64.

Nor140 Option 14 – FFT spectrum with dB

Nor140 Option 14 – FFT spectrum with Engineering Units

Option 15: Survey Sound Power measurement mode

text

Calculates the survey grade LWA sound power level based on multiple measurement positions on a theoretical hemisphere above a noise source placed on a reflective floor.
Automatic correction of background noise level.
Fulfils the requirements of the ISO 3746 Standard.

This option allows the user to perform survey grade LWA sound power level measurements in the field without any other external device. A perfect tool for verifying the sound power level of equipment after installation. A graphical wizard guides the user through the measurement – easy and intuitive to use!

Nor140 Option 15 – Sound Power results

Option 16 : Trigger

text

Trigger the start of a measurement based on the internal clock, level threshold or external TTL signal such as hand switch Nor263A.
Level threshold trigger used in combination with Repeat storage makes an automatic event measurement device.
The audio recording is triggered based on the clock, level threshold or external TTL signal such as hand switch Nor263A.
The measurement and audio recording trigger can be set independently of each other.
A special pre-trigger feature on the audio recording can be set up to capture the latest seconds of the audio signal prior to the trigger point.

Nor140 Option 16 – Measurement trigger

Option 17: Audiometer calibration

text

Calculates frequency of the pure tone, Level of the pure tone and Harmonic distortion based on the 1/3 octave frequency spectrum.
Frequency range: 20 Hz – 17766 Hz.
Frequency accuracy: 0.3%.
Frequency resolution: 0.1 Hz.
Harmonic distortion resolution: 0,1%.

Audiometer calibration
Audiometry is the testing of hearing ability. Audiometric tests determine a subject’s hearing levels with the help of an audiometer. For reliable test results, it is essential that audiometers are regularly calibrated in accordance with the relevant standards.

Nor140 can be equipped with the option for audiometer calibration which provides the ability for acoustical measurement of frequency and level of the test signal as well as harmonic distortion. Measurement take only 2 seconds and is performed in an intuitive way presenting the 1/3 octave band spectrum together with a result table containing values for frequency of the test tone, level of the test tone, Z Leq and harmonic distortion.

Option 17 requires that minimum option 1 and 3 are installed

Option 18: Extended measurement range

text

Microphone self-noise compensation at the lower-levels.
Compensate all measured function of the A- and C-/Z-weighting networks.
Adjustable microphone self-noise levels for use of other microphones.
Improves the lower measurement range by typically 7 – 10 dB.
Shifts the measurement range 10 dB upwards (i.e. 25 – 147 dBA).
Possible to detect Lpeak levels up to 150 dB without changing microphone.

Option 19: Remote control option for third party system integrators.

text

The Nor140 is widely used as frontend in applications developed by system integrators. A typical example is TopSonic, a world leading company in airport noise monitoring. The Nor140 is installed at numerous airports worldwide as a noise measuring frontend to TopSonic’s monitoring software.

The Nor140 features full remote control and readout of all measurement data. In addition, special features are added to support various readout format and increased redundancy to ensure a stable 24-7 operation. Consult factory for further details.

Specifications

text

The Nor140 fulfil the following standards set for sound level meters:
IEC 61260-1, IEC 61260-2, IEC 61260-3, IEC 61672-1
ISO 717-1, ISO 717-2, ISO 10140-2, ISO 10140-3, ISO 10140-4, ISO 16283-1, ISO 16283-2, ISO 16283-3, ISO 354, ISO 3382-2, ISO 10052, ISO 16032, ISO 1996-1, ISO 1996-2, ISO 3746
ASTM E1007-21, ASTM C423-22, ASTM E336-20, ASTM E90-9,
ANSI S1.4, ANSI S1.11, ANSI S1.43, ANSI S12.12-1992

Analouge inputs

Number of channels: 1
Input connector: 7 pin LEMO connector for Norsonic microphone systems.
Microphone: Nor1225, 1/2”, freefield, 50 mV/Pa.
Preamplifier: Nor1209 (Normal) or IEPE-type by menu selection.
Preamplifier supply voltage: ±15 volt, max 3 mA
Polarisation voltage: 0 V and 200 V, selectable.
Maximum input signal: ±11V peak
Preamplifier IEPE®:
Supply current: 4mA
Supply voltage: 24V
Input impedance: >100 kΩ, <650 pF

Measurement range

Measurement range: 0,3 µV – 7Vrms (10 Vpeak) in one range corresponding to -10 dB to 137 dB (140 dB peak) with a microphone sensitivity of 50mV/Pa. Option 18 shifts the measurement range to 147 dB (150 dB peak) by reducing the microphone sensitivity

Highpass filter

The input section is equipped with an analogue highpass filter to reduce noise from wind or other sources with frequencies below the frequency range for measurements. The filter is switched on if the limited frequency range is selected (>6,3 Hz).
Filter type: 3rd order HP filter (-3 dB at 3,4 Hz, Butterworth response).

Analogue to digital conversion

The analogue input signal is converted to a digital signal by a multirange sigma-delta converter with an effective sampling frequency of 48 kHz. The anti-aliasing filter is a combination of an analogue and a digital filter.

Frequency weightings

Simultaneous measurement of A and C-weighting or A- and Z-weighting. 1/1 octave band or 1/3 octave band levels may be measured simultaneously if options providing these weightings are installed.
1/1 octave filters: 0,5 – 16000 Hz, class 1, digital IIR filters, base 10 system (IEC 61260) and ANSI S1.11- 2004 Class 1.
1/3 octave filters: 0,4 – 20000 Hz, class 1, digital IIR filters, base 10 system (IEC 61260) and ANSI S1.11- 2004 Class 1.

Level detector

Detector type: Digital true rootmean-square (RMS) detection, resolution 0.1 dB which may optionally be increased to 0.01 dB for indicated levels in the range –9.99 to 99.99 dB.
Crest factor capability: The crest factor is only limited by the peak-value of the signal.
Simultaneous measurement of the following functions: SPL, Lmax; Lmin; Leq; LE; Lpeak; LN; LeqI; LEI; LTMax5

Indication range

The calibration of the instrument allows microphones with sensitivity in the range -84 dB to +15.9 dB relative to 1V/Pa to be applied. The corresponding display range for the indicated sound level is -50 dB to +180 dB.

Self-noise levels

The self-noise is measured with the calibration set to –26.0 dB corresponding to a microphone sensitivity of 50mV/Pa. For voltage input, the level 0 dB then corresponds to 1µV. Typical values for the self-noise are 5 dB lower than the values stated. Noise measured with 18 pF microphone dummy and microphone preamplifier Nor1209, averaged over 30 s of measurement time:
A-weighted: 13 dB
C-weighted: 15 dB
Z-weighted: 25 dB
1/3 oct: 6.3 Hz to 250 Hz: 10 dB
1/3 oct: 315 Hz to 20 kHz: 5 dB

Noise measured with Nor1225 microphone and preamplifier Nor1209, averaged over 30 s of measurement time:
A-weighted: 18 dB
C-weighted: 22 dB
Z-weighted: 30 dB
1/3 oct: 6.3 Hz to 250 Hz: 15 dB
1/3 oct: 315 Hz to 20 kHz: 10 dB

Power supply

Batteries: 4 cells, IEC LR6, AA-sized
Typical battery life time: up to 8 hours

External DC: 11 – 16V. Power consumption approximately 1.2W depending on selected modes of operation. The mains adapter Nor340 is recommended for use with the instrument. If the external supply falls below 9V, the instrument will use the internal batteries if available. If the instrument switched itself off due to loss of power, it will automatically switch on and resume normal operation after reapplying the external DC supply.

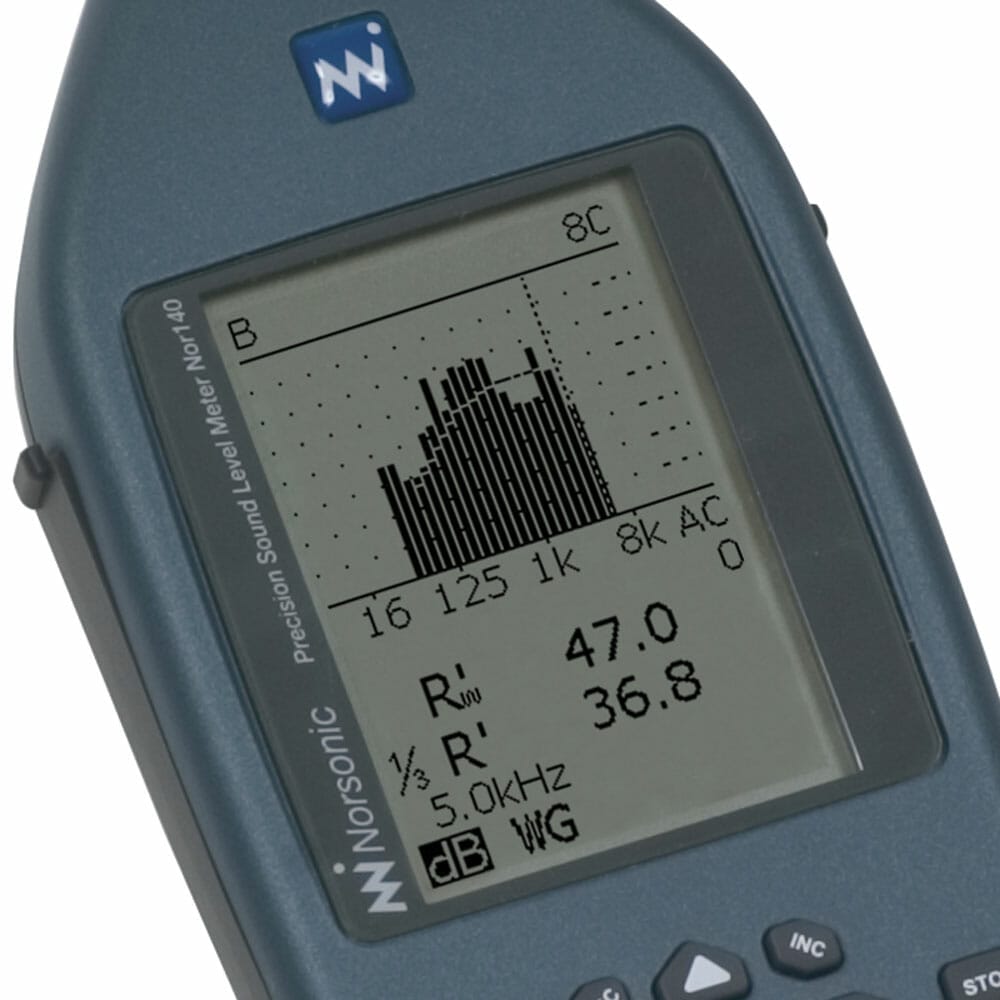

Display

The display is a monochrome, transreflective LCD graphical display with 160×240 pixels (W×H) with automatic temperature compensation for contrast and viewing angle. Pressing the light key illuminates the display. The light switches off automatically two minutes after the last operation of any key. The bargraph display covers 80dB which may be scrolled in 10dB steps to cover the total range.

Signal generator output

Max output voltage: ±10V
Output impedance: <100Ωohm. The output is short-circuit proof to GND and output current is in excess of 3 mA.
Gain accuracy at 1 kHz: ±0.2 dB
Frequency response re. 1 kHz: ±0.5 dB for 20 Hz < f< 20 kHz
AC-out: 3,5 mm stereo jack. Both channels have identical signals driven by two separate amplifiers. Load impedance shall be 16 ohm or more. Output voltage is generated by the 48 kHz DAC based on data from DSP. Full scale on the display bargraph corresponds to 100 mV.
Output impedance: Less than 10 ohm, AC-coupled 100 µF.
Gain accuracy 1 kHz: ±0,2 dB
Frequency response re. 1 kHz: ±0,5 dB for 20 Hz < f < 20 kHz.
USB interface: USB type 2.0
USB socket: B411
Serial I/O port: RS232 port, 9600 – 115200 baud.
Digital inputs: 3
Digital outputs: 4

SD Memory Card

The instrument may use SD memory card for storing of setup information, sound recordings and measurement results. SD memory card included in the delivery

Data storage

Measured data is stored in the internal memory of the sound level meter or on the SD memory card. The internal memory is of the “flash” type retaining the information without battery supply. Approximately 25 Mbyte is available for the data storage

Environmental condition for operation

Temperature: –10°C to +50°C
Humidity: 5% to 90% RH, dewpoint less than 40°C.
Atmospheric pressure: 85 kPa to 108 kPa.

Environmental condition for storage

Temperature: –30°C to +60°C
Humidity: 5% to 90% RH, dewpoint less than 40°C.
Atmospheric pressure: 50 kPa to 108 kPa.

Dimensions

Depth: 30 mm
Width: 75 mm
Weight incl. batteries: 410 g
Length, excl.microphone/preamplifier: 210 mm
Length, incl. microphone/preamplifier: 292 mm

Accessories

text

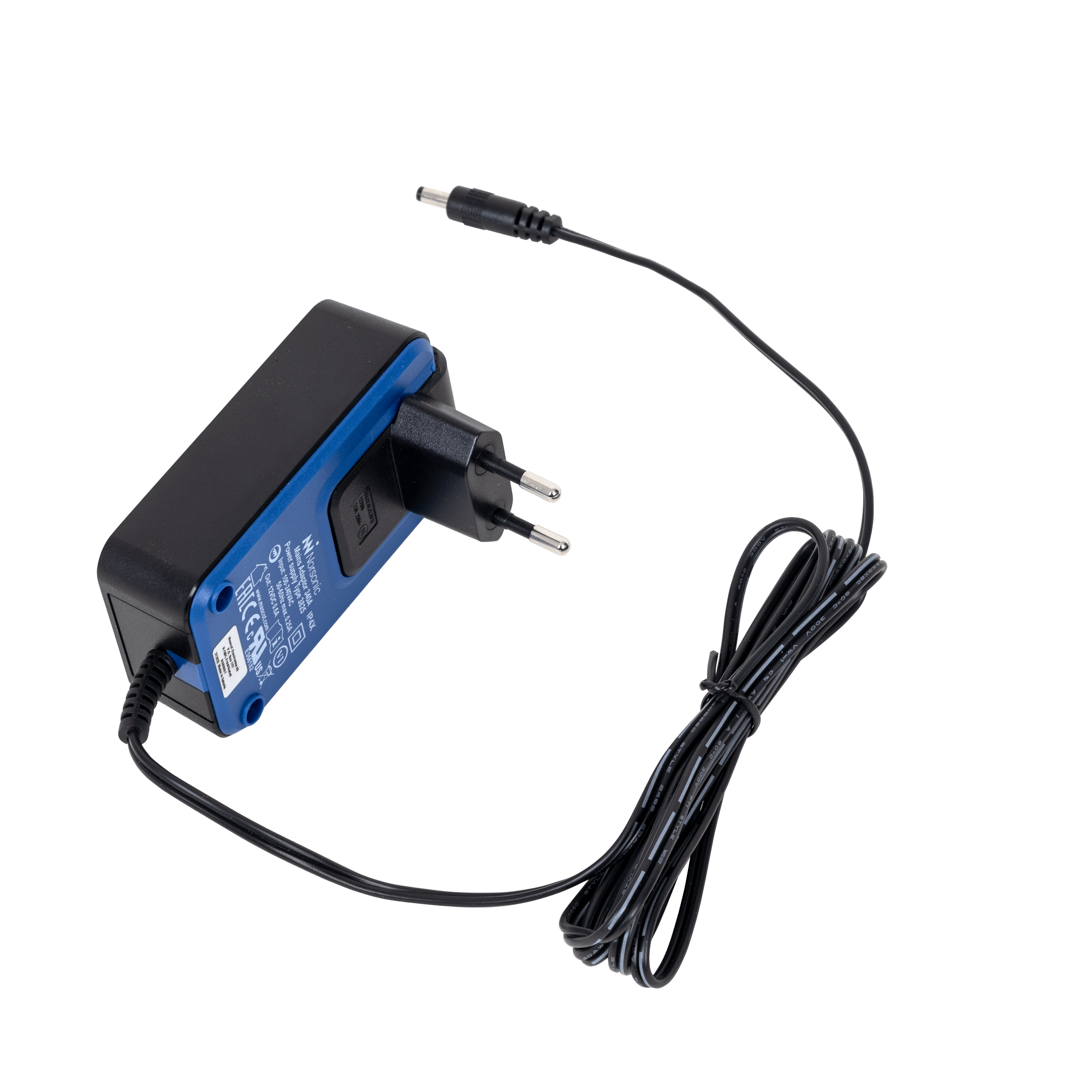

Norsonic Nor340A mains adaptor for Nor139 and Nor140 sound level meter.

Sound level meters

Nor340A Mains adaptor

Sound level meters

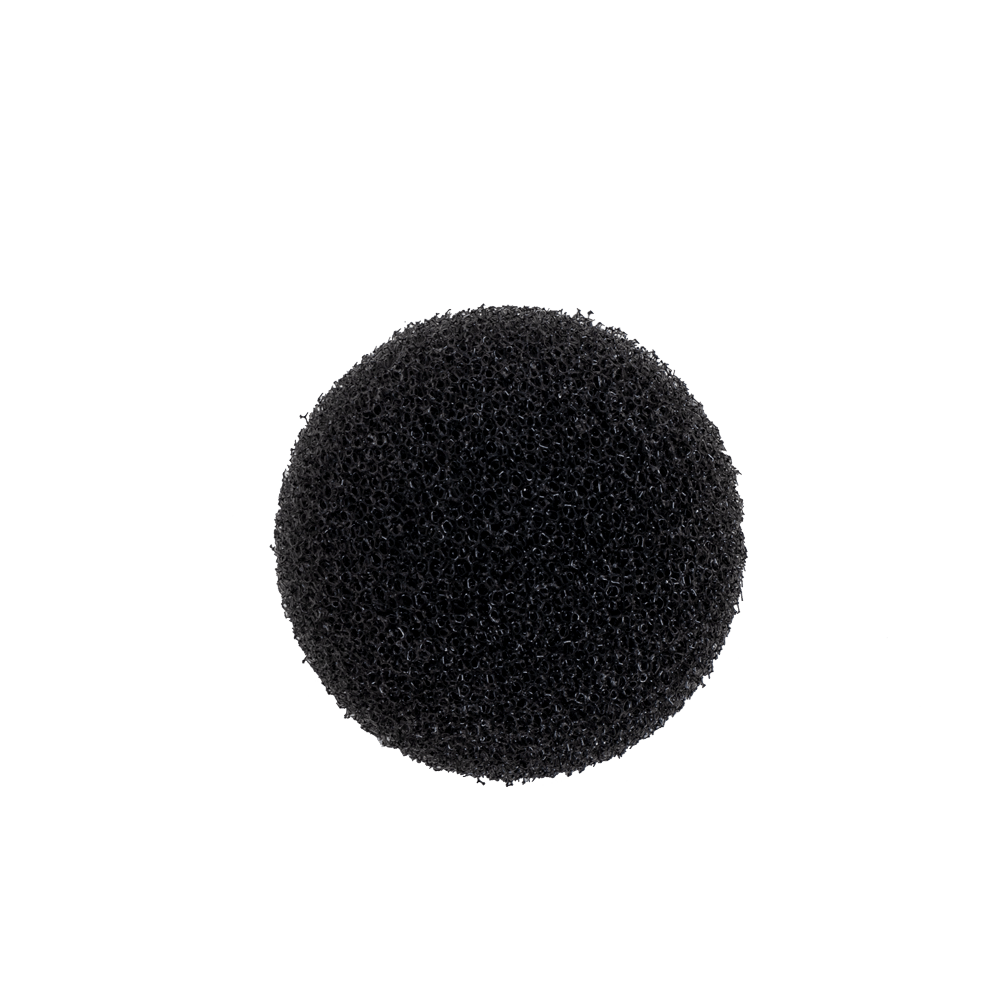

Nor1451 Windscreen, 60mm

Sound level meters

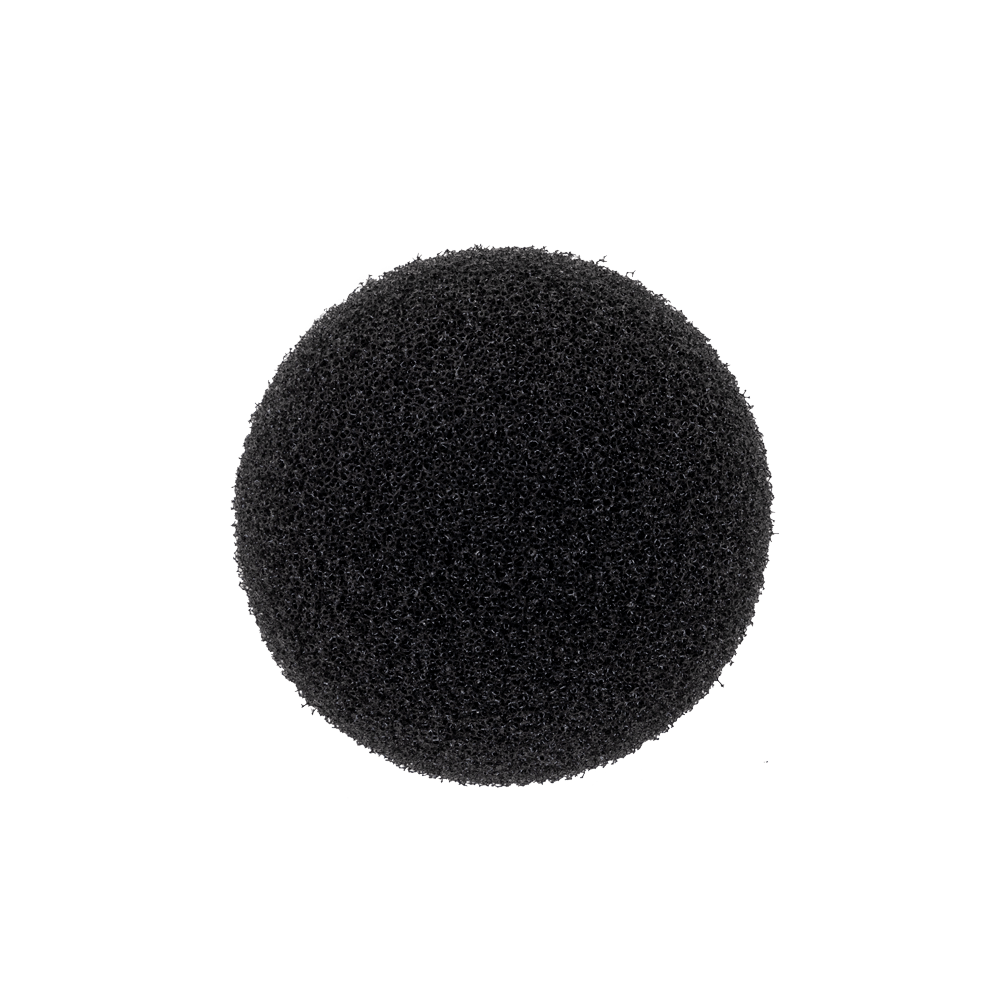

Nor1434 Windscreen, 90mm

Sound level meters

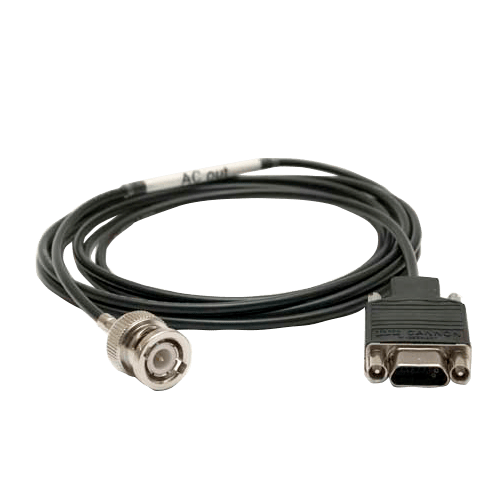

Nor4514A AC output cable

Norsonic Nor1335A softbag for Nor140 sound level meter and accessories

Sound level meters

Nor1335A Softbag

Norsonic Nor1408A Preamplifier extension cable

Sound level meters

Nor1408A Preamplifier extension cable

Norsonic Nor1410A 2m microphone preamplifier cable

Sound level meters

Nor1410A Microphone preamplifier cable 2m

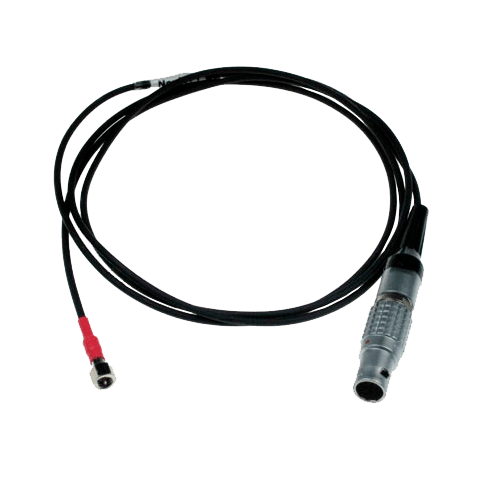

Norsonic Nor4571 Lemo cable 7pin 1B to microdot male

Sound level meters

Nor4571 cable Lemo 7pin 1B to microdot male

Norsonic Nor1438 is a BNC to Lemo cable.

Sound level meters

Nor1438 Cable BNC/LEMO

Sound level meters

Nor263B Remote hand switch

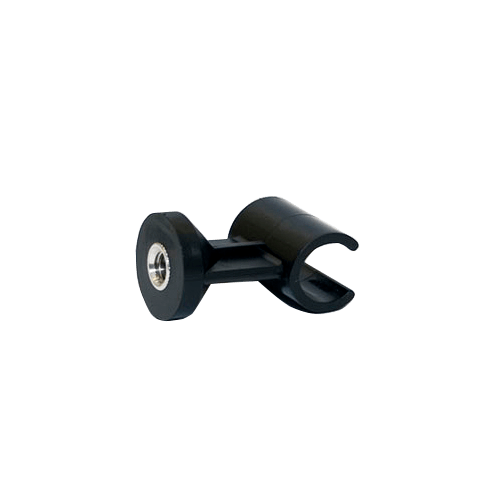

Norsonic Nor1261 is a “clip-on” tripod adaptor for use with 1/2″ Preamplifiers.

Sound level meters

Nor1261 Tripod adaptor

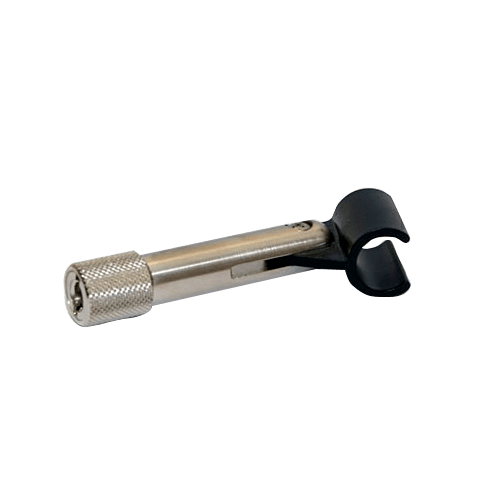

Norsonic Nor1262 tripod adaptor, adjustable

Sound level meters

Nor1262 Tripod adaptor, adjustable

Sound level meters

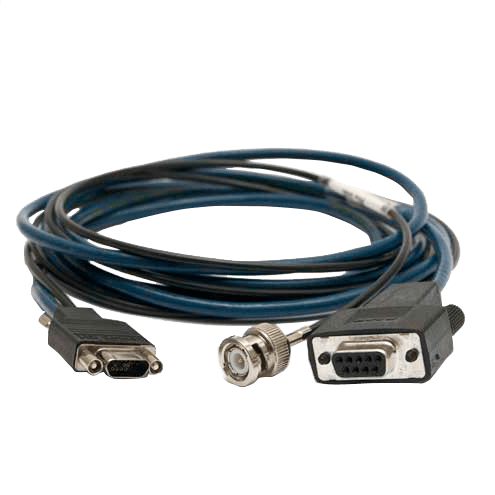

Nor4513B AC out and PC cable

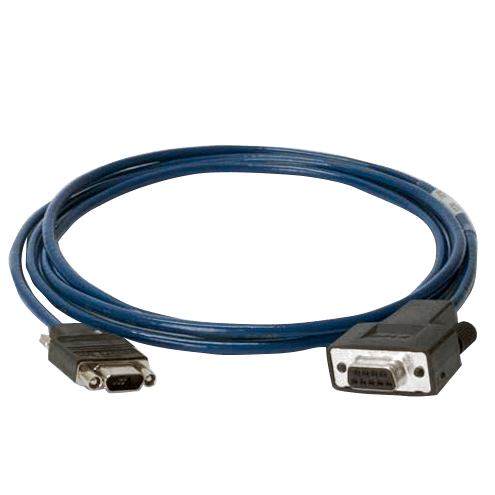

Norsonic 1441B - Cable (2m) for connection of Nor116, Nor118, Nor139 or Nor140 to PC with 9-pin connector

Sound level meters

Nor1441B PC cable

Downloads

text

Product range catalogue - English -
Norsonic_productrange_2024-2025.pdf (0.01GB)

Released

Download
Catálogo de productos - Español -
Norsonic_product_catalogue_Spanish.pdf (0.01GB)

Released

Download

USB driver -
CDM-v2.12.28-Norsonic.zip (2245.19KB)

Released

Download

NorXfer Nor1020 - 6.1.1.51
NorXfer-6.1.1.51.zip (0.05GB)

Released 08/03/2024

Download
NorXfer Nor1020 - 6.2.1
NorXfer-6.2.1.zip (0.03GB)

Released 04/03/2024

Download

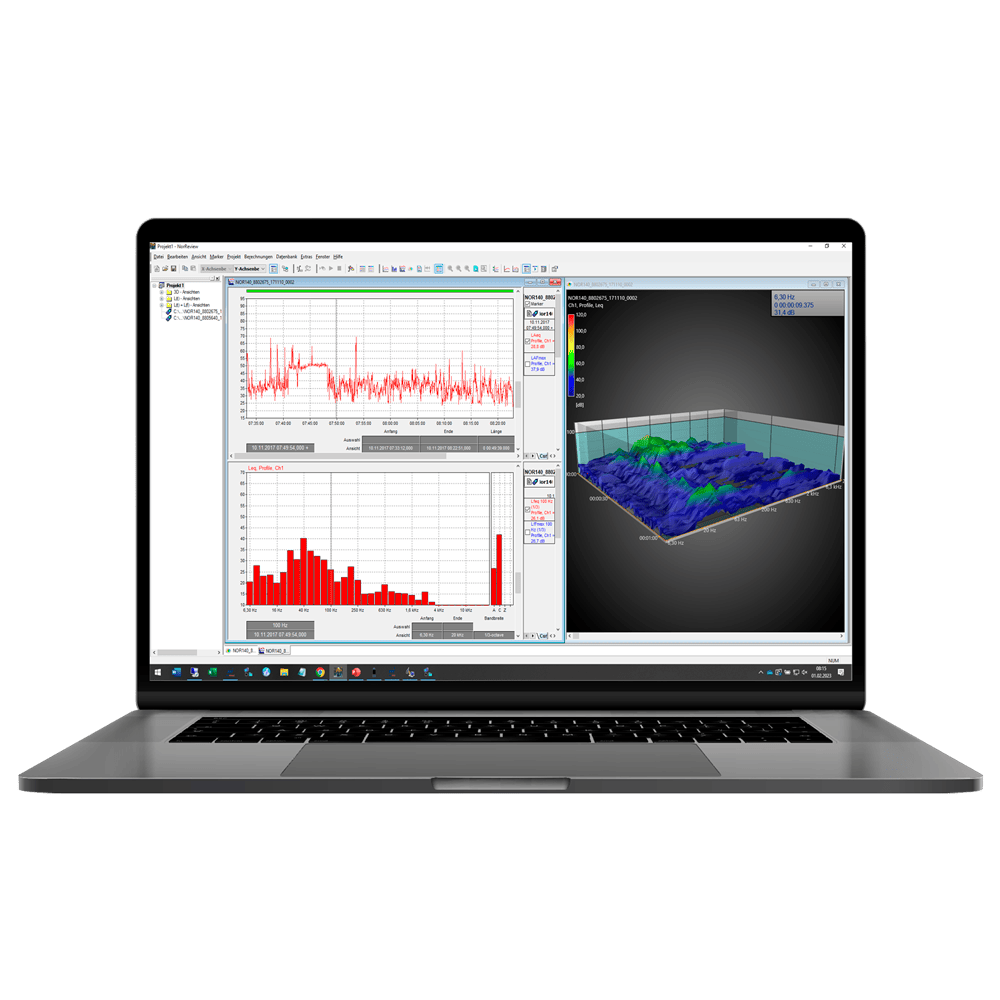

NorReview Nor1026 - 5.2.38
NorReview5.2.38.zip (0.07GB)

Released 08/03/2019

Download
NorReview - 6.3.49
NorReview-6.3.49.zip (0.1GB)

Released 22/12/2022

Download
NorReview - 6.4.44
NorReview-6.4.44.zip (0.08GB)

Released 15/11/2024

Download

NorVirtual - 5.0.240212
NorVirtual-5.0.240212.zip (0.03GB)

Released 26/02/2024

Download

NorBuild - v 3.1.952
NorBuild3.1.952.zip (0.09GB)

Released 23/02/2017

Download
NorBuild - 4.2.33-v2
NorBuild4.2.33-v2.zip (0.12GB)

Released 19/03/2024

Download

NorAcal v1.0.6 - v1.0.6
NorAcal_v1.0.6.zip (0.02GB)

Released 15/03/2018

Download

Nor140 - v3_0_1866
v3_0_1866Released.zip (3137.46KB)

Released

Download
Nor140 - 4.0.1550
140v4_0_1550Released.zip (1043.94KB)

Released 14/03/2024

Download
NorUpdate v 1.6.01 - 1.6.01
NorUpdate-1.6.01.zip (5206.97KB)

Released
Follow these steps when upgrading the firmware
- Download the latest version of NorUpdate. This program must be installed on the PC from where you connect the instrument that shall be upgraded
- Download and store the instrument firmware update pack. You may save it on any directory on your PC.
- Unzip the instrument firmaware. You may be promted for a password. Contact Norsonic or your local dealer.
- Start NorUpdate. Make sure that the path to files are set correctly. This is found in the “File menu”
- Follow the instructions given in the NorUpdate sofware.
Please note! Instruments sold in France, Austria, Germany, Spain and Switzerland is subjected to use pattern evaluated software only. Users in these countries are requested to contact their local Norsonic representative to get the current type approved version.

Achtung! In Deutschland, Österreich, Spanien und der Schweiz unterliegen Schallmessgeräte einer Bauartzulassung / Baumusterprüfung. Die Firmware des Messgerätes ist Bestandteil dieser Bauartzulassung. Führen Sie daher bitte selber kein Firmware-Update durch, sondern wenden sich bei Interesse / Fragen an Ihren lokalen Norsonic-Vertreter!

Attention ! Les instruments vendus en France, Suisse, Allemagne, Autriche et Espagne doivent être configurés exclusivement avec le logiciel homologué. Dans ces pays, les utilisateurs sont priés de contacter leur représentant local Norsonic pour obtenir la version actuelle approuvée.

Por favor, tenga en cuenta que los instrumentos vendidos en España, Austria, Alemania y Suiza deben usarse exclusivamente con el software evaluado en el examen de modelo. Se sugiere a los usuarios de estos países que contacten con los distribuidores locales para obtener la versión aprobada en la actualidad.
Download

STIPA - IEC 60268-16 ed. 5 standard -
(0KB)

Released

EC 60268-16 (Ed.5.0 2020): Sound system equipment – Part 16: Objective rating of speech intelligibility by speech transmission index.
The CIS-value is calculated from the STI-value as specified in: IEC 60849 (Ed. 2.0 1998-02) Sound systems for emergency purposes. (Withdrawn 2008).
The instrument measures STIPA as specified in Annex B of IEC286-16 by the direct method.

Download

STIPA v4 -
(0KB)

Released

IEC 60268-16 (Ed.4.0 2011-06): Sound system equip-ment – Part 16: Objective rating of speech intelligibility by speech transmission index.
The CIS-value is calculated from the STI-value as specified in:
IEC 60849 (Ed. 2.0 1998-02) Sound systems for emer-gency purposes.

Download

Type approval PTB - Germany -
Nor140-PTB-type-approval-2013-incl-Nor1216-and-Nor1217.pdf (0.03GB)

Released

Download
Type approval LNE - France -
LNE-24006-rev.-2-du-27-octobre-2017-NOR140.pdf (1305.02KB)

Released

Download
Type approval CEM - Spain -
Spain_Nor140.pdf (409.55KB)

Released

Download
Type approval Portugal -
Model_Approval_Nor145_Portugal_2021.pdf (442.44KB)

Released

Download
Type approval BEV - Austria -
BEV-Austria-Nor140.pdf (568.49KB)

Released

Download
Type approval METAS - Switzerland -
METAS_Zulassungszertifikat-CH-A3-18086-00_Nor140_August-2018.pdf (1714.31KB)

Released

Download
Type approval CMI - Czech Republic -
Nor140-Type-approval-Czech.pdf (194.33KB)

Released

Download
Type approval - China -
Nor140-type-approval-China.pdf (506.89KB)

Released

Download

Declaration of Conformity -
DoC_Nor140-sound-level-meter.pdf (37.58KB)

Released

Download

Support

Do you have any questions
or need support?

SUPPORT

Privacy policy
Created by NYG

Nor140 Sound analyser

Related products

Sound level meters

Room acoustics measurements with Nor145

Sound level meters

Room acoustics measurements with Nor150

Sound level meters

Building acoustics measurements with the Nor145 (1ch)

Sound level meters

Noise at Work measurements with Nor150

Applications

Features

Standards

Options

Option 1: 1/1-octave real-time filters

Option 2: Reference spectrum with “Go/NoGo” comparison

Option 3: 1/3-octave real-time filters

Option 4: Statistical calculation of LN values

Option 5: Parallel F, S and I time weightings

Option 6: Level versus time measurement

Option 7: Advanced Level versus time measurements

Option 8: Sound recording

Option 9: Reverberation time measurement mode

Option 10: Noise Generator

Option 11: Building Acoustic measurement mode

Option 12: Swept-Sine measurements

Option 13: STIPA (Speech Transmission Index) measurement mode

Option 14: FFT measurement mode

Option 15: Survey Sound Power measurement mode

Option 16 : Trigger

Option 17: Audiometer calibration

Option 18: Extended measurement range

Option 19: Remote control option for third party system integrators.

Specifications

Analouge inputs

Measurement range

Highpass filter

Analogue to digital conversion

Frequency weightings

Level detector

Indication range

Self-noise levels

Power supply

Display

Signal generator output

SD Memory Card

Data storage

Environmental condition for operation

Environmental condition for storage

Dimensions

Accessories

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Sound level meters

Downloads

Product range catalogue

Product range catalogue - English -

Catálogo de productos - Español -

USB drivers

USB driver -

NorXfer

NorXfer Nor1020 - 6.1.1.51

NorXfer Nor1020 - 6.2.1

Nor1026 NorReview

NorReview Nor1026 - 5.2.38

NorReview - 6.3.49

NorReview - 6.4.44

NorVirtual

NorVirtual - 5.0.240212

Do you have any questions
or need support?
